BW15 Series Batwing Overhaul Kit - Woods
Kit Contents

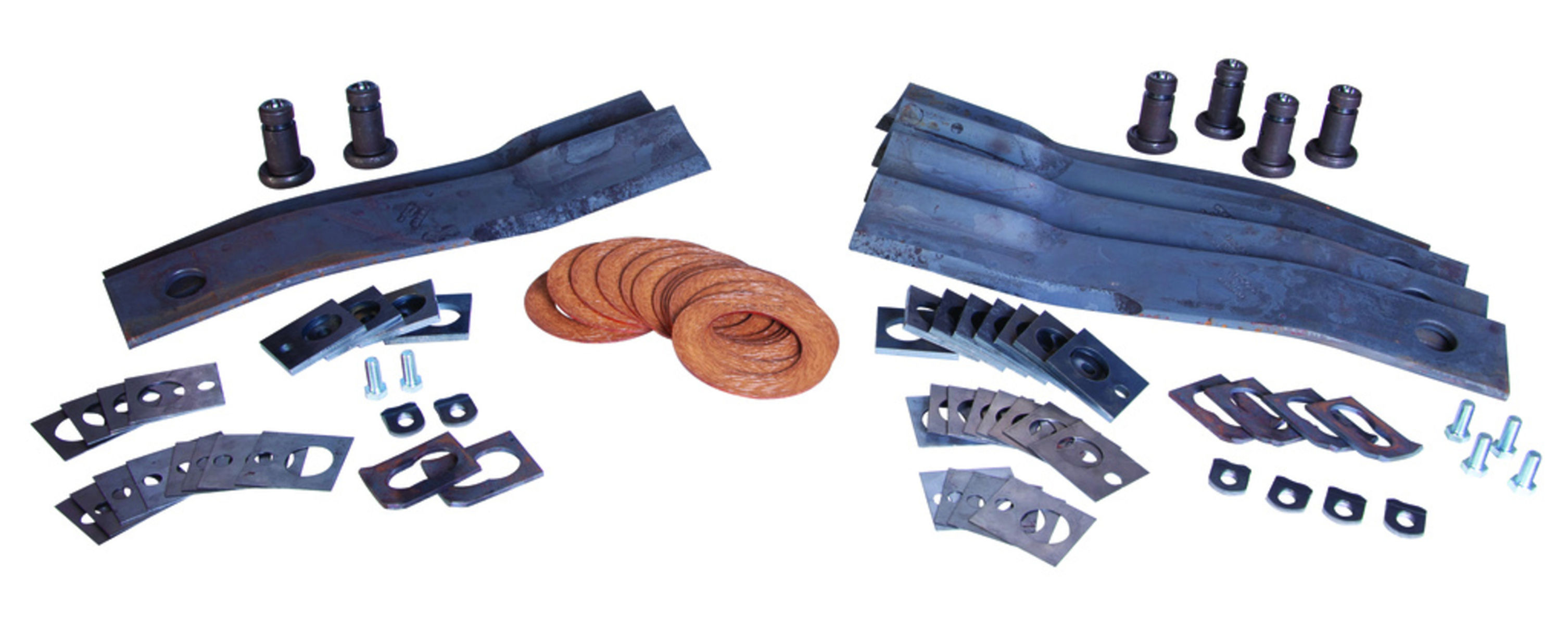

Six rotary cutter blades, six greaseable blade pins, six slip clutch plates and Quick-change blade components and hardware
- Ease of Order – Everything you need in one box to complete a basic overhaul on a BW15.50 or BW15.60* Batwing® rotary cutter
- Greater Savings – Save 10% on a kit versus purchasing the individual parts
- Reduced Downtime – Reduce in-season downtime, or eliminate it altogether, by replacing all major wear components in one pass
*When ordering the kit for a BW15.70, add 6 additional slip clutch plates to your order.
Specs
- Tractor PTO HP: 70-300
- Hitch Type: Swivel clevis
- Cutting Height (in): 2 to 15
- Cutting Capacity Diameter (in): 4
- Cutting Width (in): 240
- Blade Tip Speed (fpm): 15,450 at 540 rpm; 16,300 at 1,000 rpm
- Weight (lbs): 7,740
- Deck Thickness (in): .135 in upper and lower
- Side Skirt Thickness (in): 0.25
- Side Skirt Depth (in): 12.5
- Transport Width (in): 99
- Wing Flex Up/Down (degrees): 90 up, 22 down
- Driveline Rating: CAT 6 CV main, CAT 5 wing
- Splitter/Wing Gearbox Rating (hp): 275 / 225 *Gearbox horsepower ratings listed are based on Woods’ field testing
- Output Shaft Diameter (in): 3
- Tongue Weight (lbs): 2,700
- Wheel Options: 15 inch rims; 21 inch laminated; 25 inch severe-duty Ag; or 29 inch used aircraft
- Gearbox Warranty (yrs): 6
- Options:
Double row chain shielding; tandem spring arm suspension; pintel ring hitch; shredding kit; deck rings; spring-loaded wing lock-ups for narrow (118 Inches) transport width; LED lights - Suspension: Spring-loaded axles
- Blade Overlap (in): 6
- Blade Dimensions (in): .5 x 4
- Cutting Area Shielding: Standard chain shielding
